hai chết đầu Máy thổi màng
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.,Scientifically designed,this machine set has two heads for one extruder with such advantages as increasing production capacity,saving energy,labour and workshop area,etc.
Yêu cầu giỏ
OEM：
Có sẵn
Mẫu:
Từ chối
Cổng:
Ninh Ba
Thanh toán:
PayPal, VISA, MasterCard, Western Union, L/C, T/T
Xuất xứ:
Trung Quốc
Vận chuyển:
Vận tải đường biển · Vận tải đường bộ · Vận tải đường hàng không
Cung cấp khả năng:
600 bộ mỗi năm
Chi tiết sản phẩm

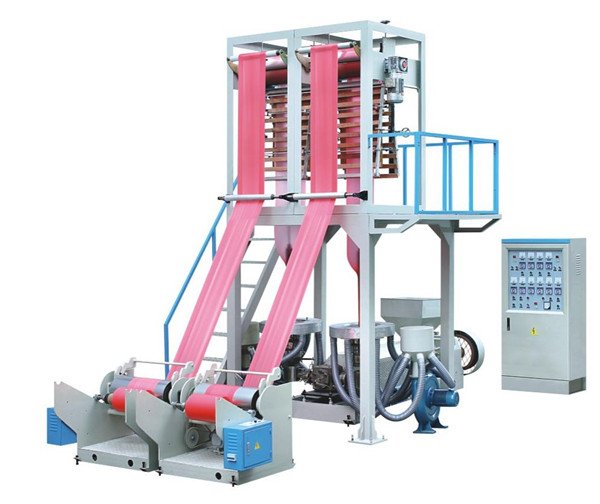

Hai chết đầu Máy thổi màng
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.,Scientifically designed,this machine set has two heads for one extruder with such advantages as increasing production capacity,saving energy,labour and workshop area,etc.
This machine set is used for blowing Low-density polyethylene(LDPE)and high-density polyethyene(HDPE)plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry,garment industry and textile industry,etc.
Technical Parameter:
|
Model
|
SJ65-FM600
|
SJ70-FM700
|
SJ75-FM800
|
|
Screw Diameter
|
65mm
|
70mm
|
75mm
|
|
Screw Ratio
|
28:1
|
28:1
|
28:1
|
|
Screw Speed
|
10-110r/min
|
10-110r/min
|
10-110r/min
|
|
Max.Output
|
50kg/h
|
70kg/h
|
90kg/h
|
|
Max.Folding Width of Film
|
550mm*2
|
650mm*2
|
750mm*2
|
|
Single-sided Thickness of Film
|
0.006-0.10mm
|
0.006-0.10mm
|
0.006-0.10mm
|
|
Power of Main Motor
|
18.5-22Kw
|
22-30Kw
|
37Kw
|
|
Total Power
|
40Kw
|
55Kw
|
70Kw
|
|
Weight of Machine
|
3000kg
|
3800kg
|
4500kg
|
|
Overall Dimensions(mm)
|
4.8*2.2*3.8
|
5*2.4*4
|
5.2*2.6*4.2
|
